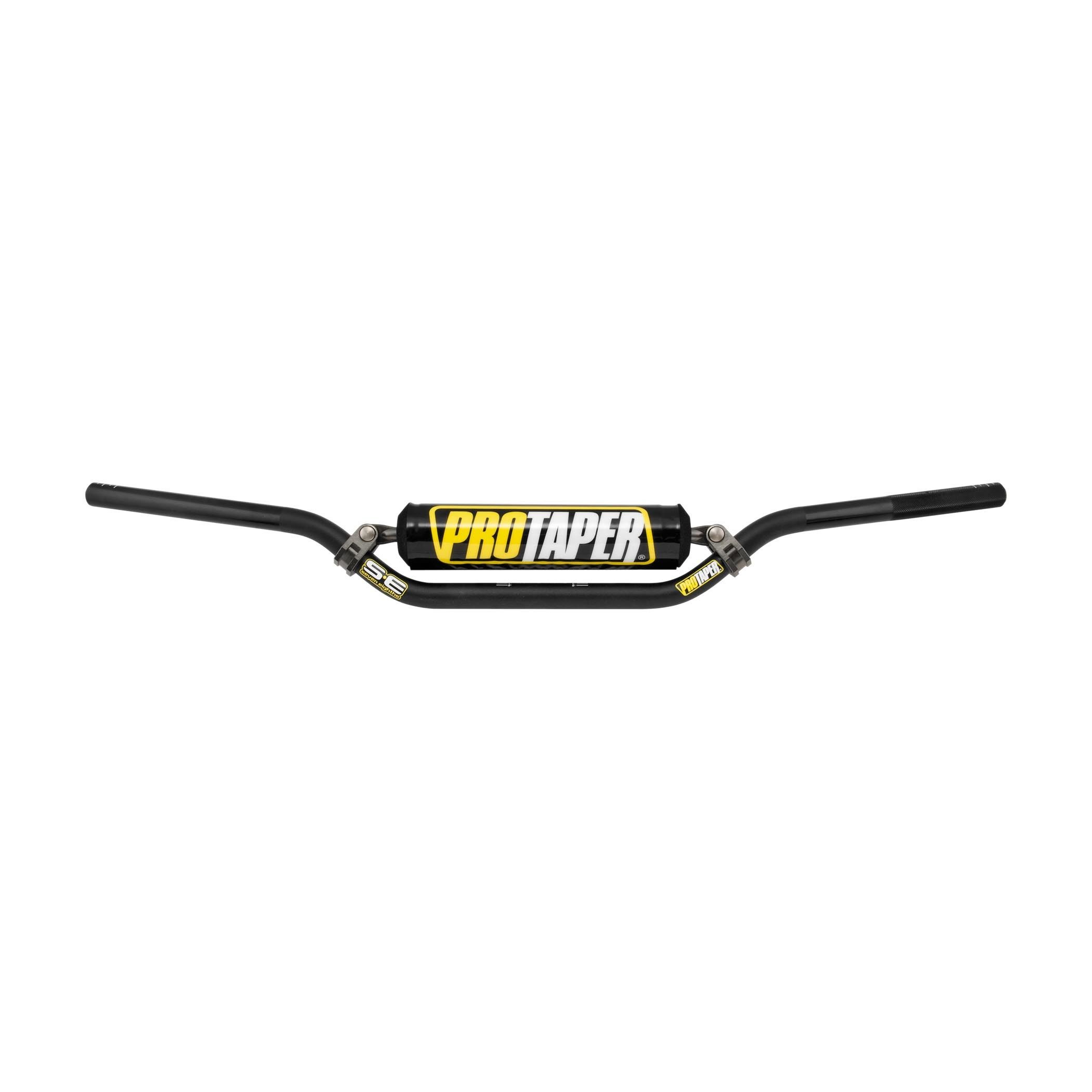

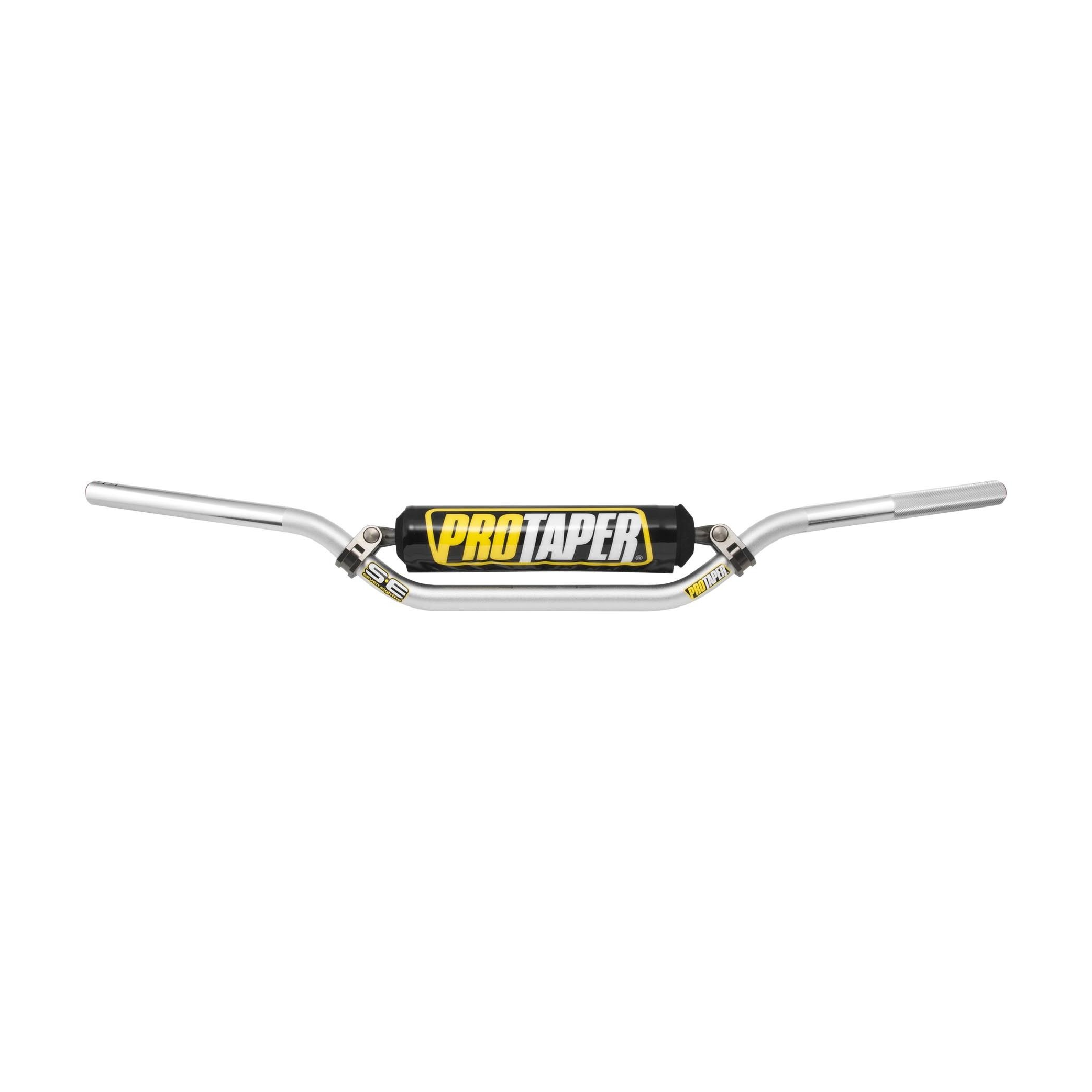

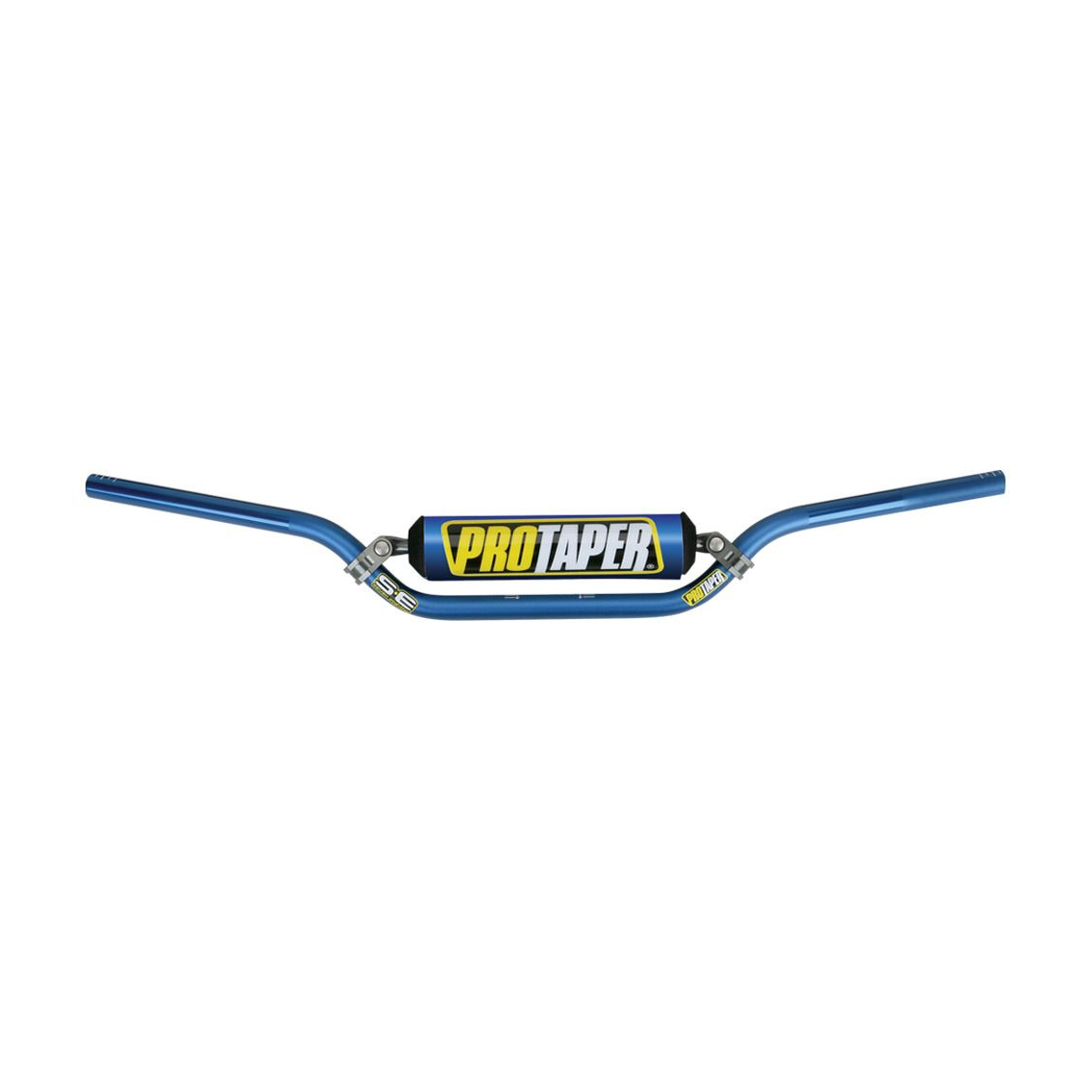

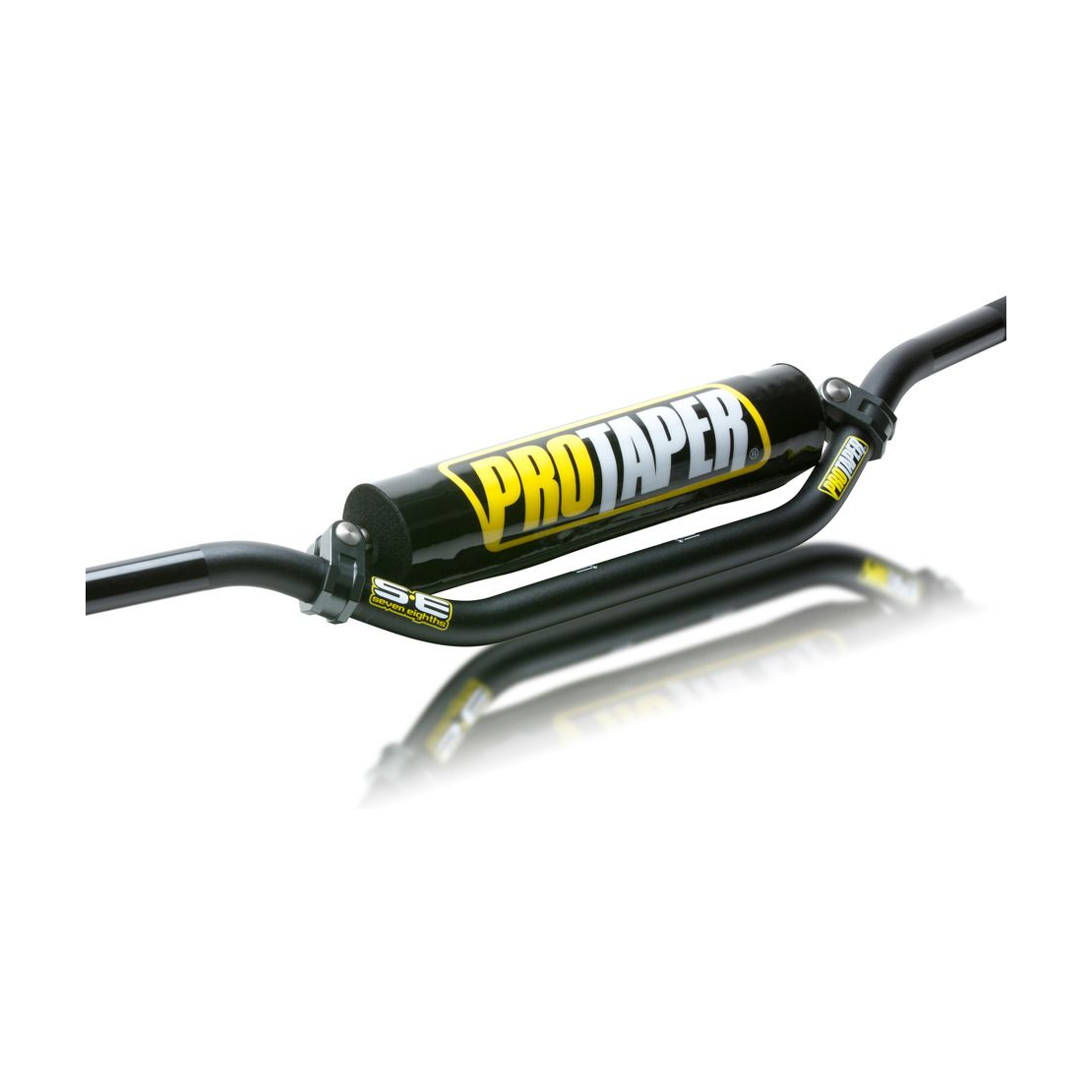

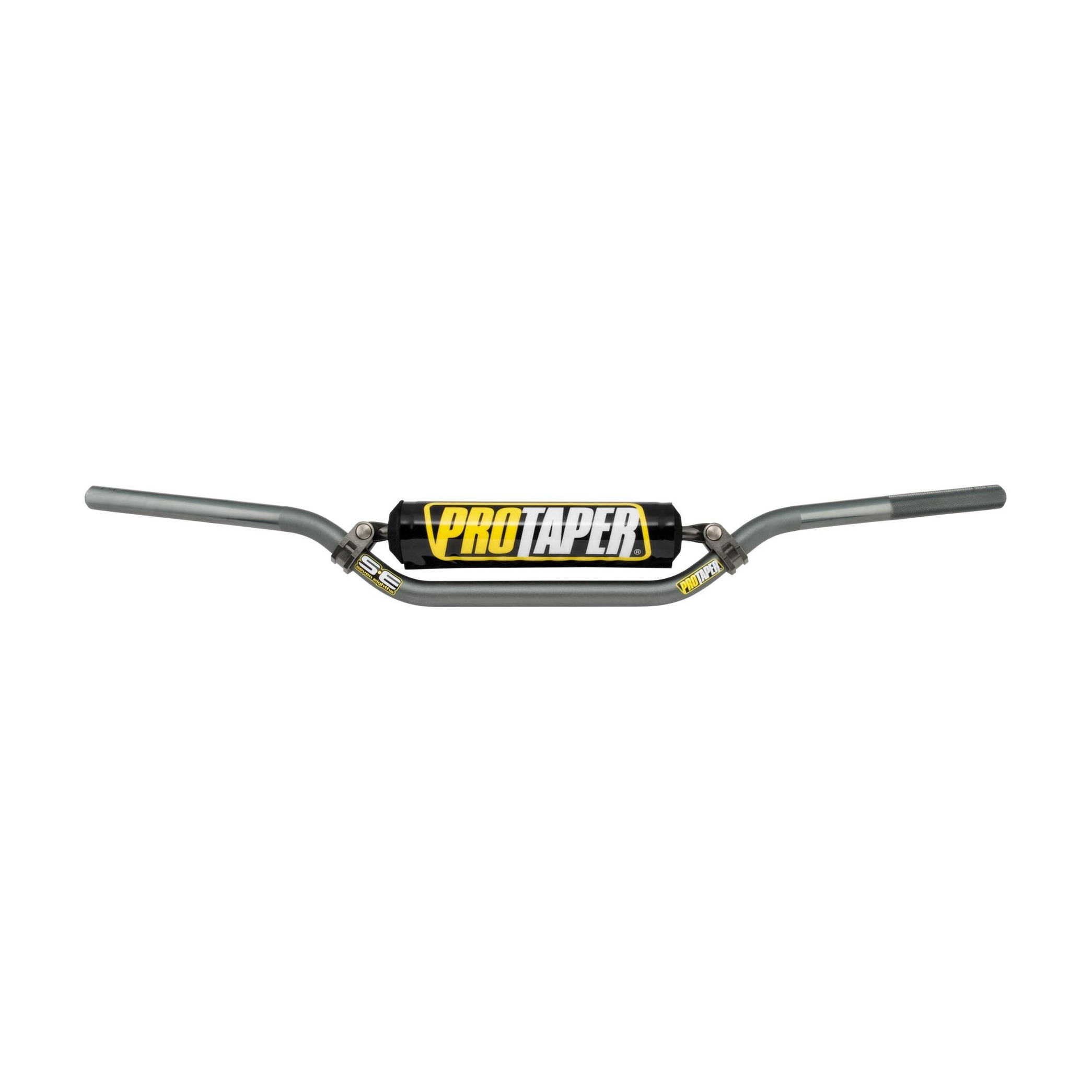

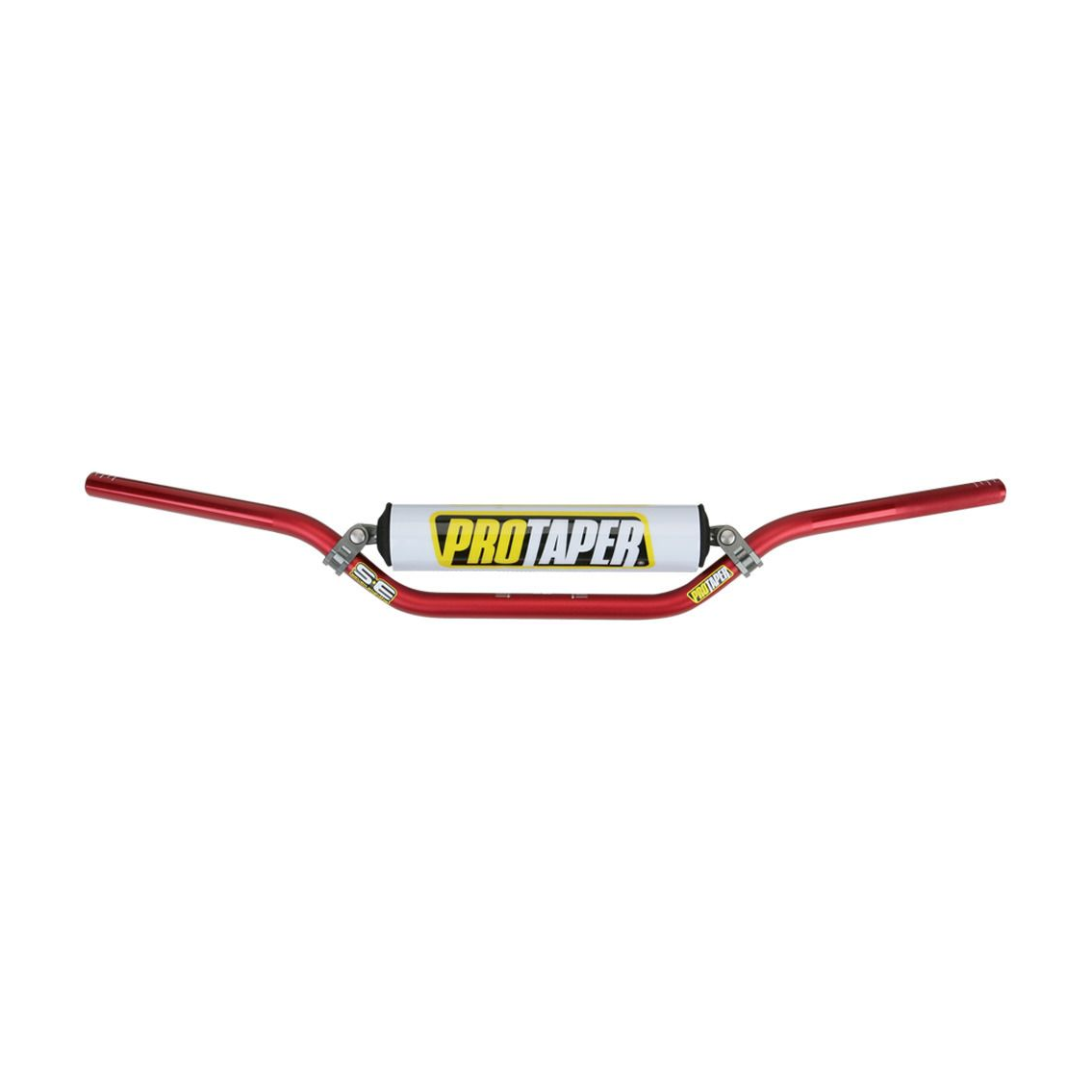

The Pro Taper SE bar is Pro Taper�s seven eighths inch diameter handlebar designed for riders who still prefer the look, feel, and stability of a bar with a cross brace. Constructed of 5mm, 2000 series T6 aluminum, with a cold forged aluminum brace, the Pro Taper SE bar is a great choice for anyone searching for a high quality, value priced handlebar.
Made from 5mm, proprietary, 2000 series T6 aluminum alloy
Crossbar made from cold forged aluminum
Crossbar clamps CNC machined from 6061 aluminum and adhered with aerospace quality polymer
Standard 7/8" bar
High tech, stress relieved, shot peen, anodized finish for unmatched durability
Left side knurling provides maximum grip traction
Chemically applied graphics are scratch and peel resistant
End plugs help keep the elements out of the handlebar tubing and aid in longer grip life
Weighs only 1.8 pounds (820 grams) without pad
Bar pad included
The Pro Taper SE bar is Pro Taper�s seven eighths inch diameter handlebar designed for riders who still prefer the look, feel, and stability of a bar with a cross brace. Constructed of 5mm, 2000 series T6 aluminum, with a cold forged aluminum brace, the Pro Taper SE bar is a great choice for anyone searching for a high quality, value priced handlebar.
Made from 5mm, proprietary, 2000 series T6 aluminum alloy
Crossbar made from cold forged aluminum
Crossbar clamps CNC machined from 6061 aluminum and adhered with aerospace quality polymer
Standard 7/8" bar
High tech, stress relieved, shot peen, anodized finish for unmatched durability
Left side knurling provides maximum grip traction
Chemically applied graphics are scratch and peel resistant
End plugs help keep the elements out of the handlebar tubing and aid in longer grip life
Weighs only 1.8 pounds (820 grams) without pad
Bar pad included
| Product | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|
| CR High | 800 | 95 | 67 | 233 | 60 | 186 |
| CR Low | 800 | 71 | 55 | 231 | 68 | 195 |
| CR Mid | 800 | 82 | 56 | 230 | 57 | 195 |
| Carmichael | 800 | 77 | 40 | 188 | 56 | 206 |
| Factory Suzuki / KTM Stock | 800 | 92 | 61 | 233 | 47 | 190 |
| Henry / Reed | 800 | 92 | 60 | 225 | 57 | 186 |
| KX High | 800 | 107 | 70 | 223 | 54 | 184 |
| KX Low | 800 | 71 | 54 | 231 | 60 | 195 |
| Pastrana MX / RM Low | 800 | 74 | 54 | 228 | 55 | 189 |
| RM High | 800 | 82 | 53 | 223 | 73 | 195 |
| Windham / RM Mid | 800 | 99 | 69 | 243 | 54 | 189 |
| YZ High | 800 | 84 | 53 | 222 | 52 | 195 |
| YZ Low | 800 | 67 | 48 | 219 | 70 | 195 |
| SX Race | 800 | 87 | 54.5 | 216 | 54 | 195 |
